1-1337481-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1337481-0
Datasheet:
Description:

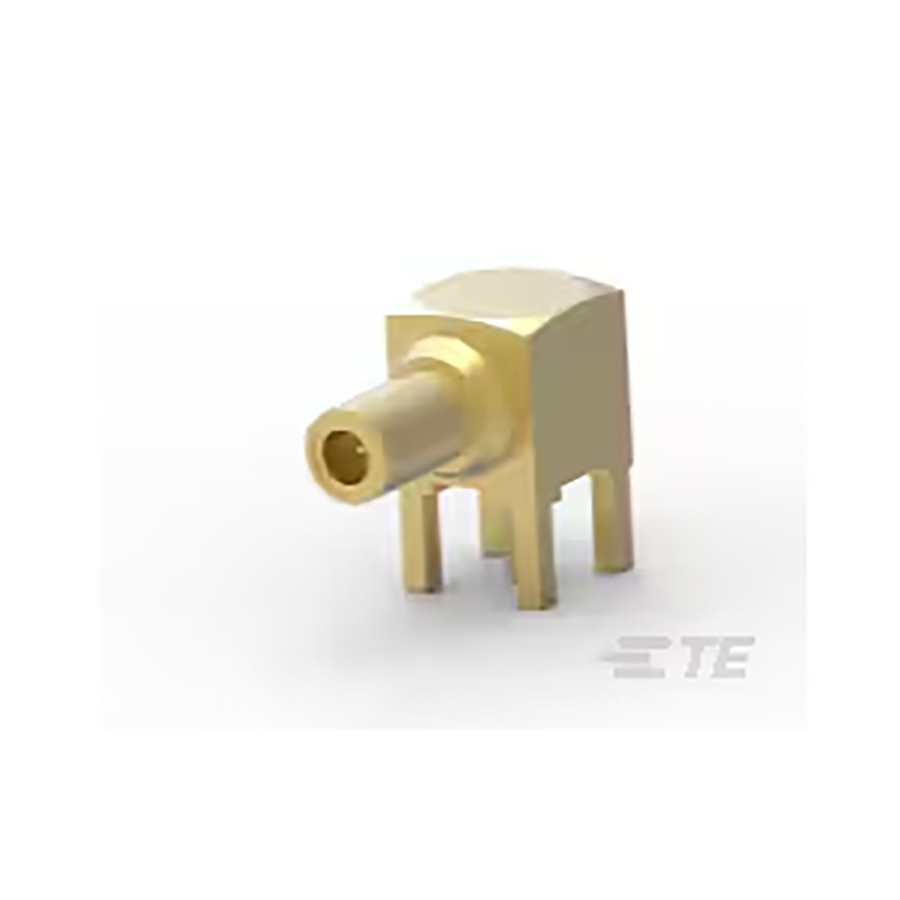

RF / Coaxial Connectors Through Hole SMB 50 Ω
| Parameter | Value |
|---|---|
| Length | 11 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 11 mm |
| Material | Brass |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 6.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass |
| Frequency | 4 GHz |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Gender | Female |
| Number of Contacts | 1 |
| ELV | Compliant |
| Body Material | Brass |
| Connector Type | SMB |
| Max Frequency | 4 GHz |
| Number of Positions | 1 |
| Insulation Material | PTFE |
| Wire/Cable Type | Coaxial |
| Fastening Type | Snap |
| Outside Diameter | 4.75 mm |
| Plating | Gold |
| Body Plating | Gold |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 3.2004 mm |
| Tail Length | 3.9 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 1598
Distributors
pcbx
pcbxUnit Price$3.42913
Ext.Price$3.42913
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.42913 | $3.42913 |
| 10 | $3.17264 | $31.72640 |
| 25 | $3.06663 | $76.66575 |
| 50 | $2.90334 | $145.16700 |
| 100 | $2.81016 | $281.01600 |
| 300 | $2.69183 | $807.54900 |
| 500 | $2.57847 | $1289.23500 |
| 1000 | $2.45280 | $2452.80000 |
